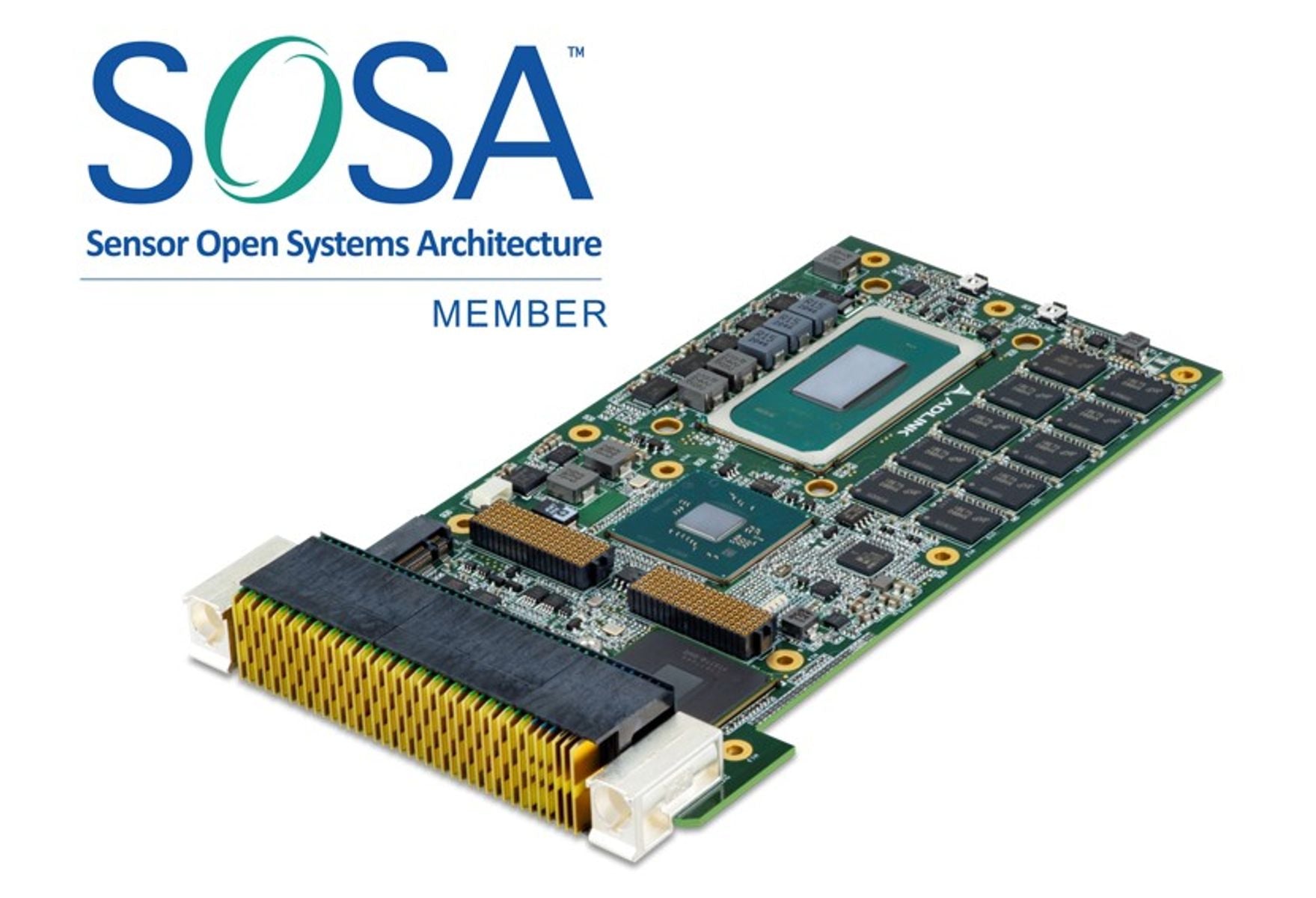

3U VPX Rugged Processor Card, VPX3-TL Series, SOSA aligned

The VPX3-TL 3U VPX processor blade is powered by Intel® Xeon® W-11865MRE Series Processor, formerly Tiger Lake-H and delivers a greater than generational improvement in performance for enhanced data and graphics and the AI acceleration capabilities required for next-generation mission-critical applications. The SOSA-aligned design of the VPX3-TL module offers embedded computing capabilities that are easily reconfigurable and upgradable, highly cost-effective, and quick to develop and deploy. The ADLINK VPX3-TL Series is SWaP-optimized and includes up to 64GB DDR4-2666 soldered ECC SDRAM; 2x 10GBASE-KR or 2x 1GBASE-KX; one XMC expansion slot with PCIe x8 Gen3 to P2 rear I/O; USB 3.0 and SATA III, (formerly known as SATA 6Gb/s), for high I/O throughput. Options include up to 1TB M.2 SSD for secondary storage. The Intel® RM590E chipset with Unified Extensible Firmware Interface (UEFI) secure boot and dual 256Mbit SPI flash supports Microsoft Windows 10, Linux and VxWorks 7.
