Beschreibung

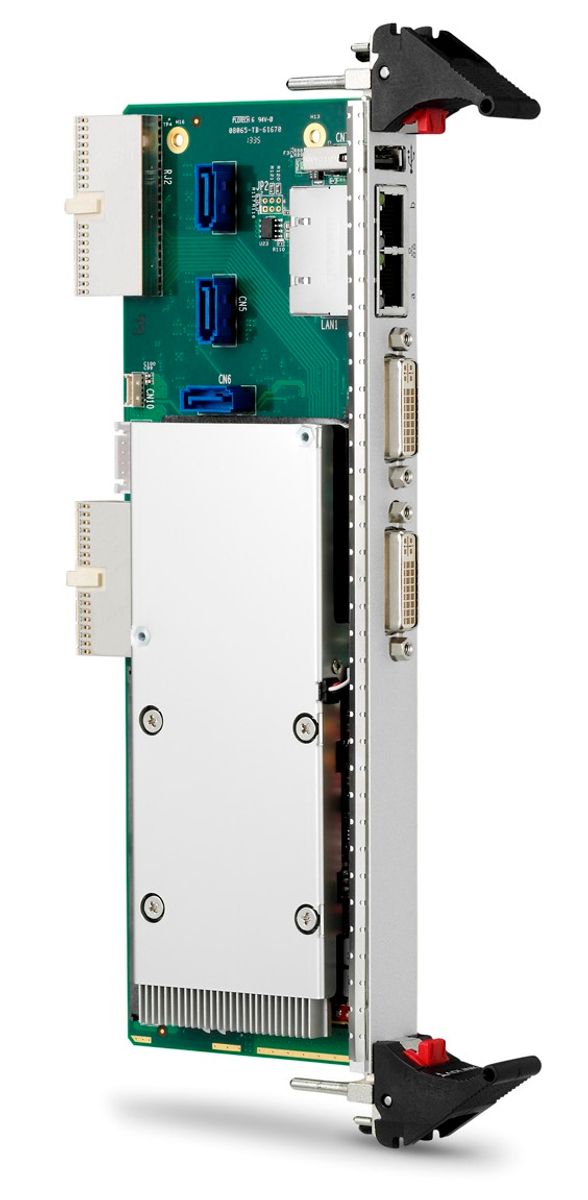

xThe cPCI-R6500 Series is 6U CompactPCI rear transition module (RTM) designed for use with ADLINK 6U CompactPCI CPU blades. The cPCI-R6500 is an RTM equipped with an ATI graphics module to provide additional graphics performance for embedded applications and supports comprehensive rear I/O functionality. Dual independent display output is via two DVI ports and an onboard Realtek ALC262 High Definition Audio Codec provides analog audio output from the audio controller on the CPU blade. The cPCI-R6500 requires a compatible 6U CompactPCI backplane with rear I/O support and correctly configured CPU blade.
Produktmerkmale
x- MXM 3.0 module with AMD Radeon™ E6760 or E8860 GPU, supporting GDDR5
- DirectX 11, OpenGL 4.1 supported
- Supports dual independent DVI displays (DVI-I, DVI-D)
- Reserved space for 2.5" SATA drive
- Rich IO interface supported
- Compatible with ADLINK 6U CompactPCI processor blades
Produktinformation
xArtikel/Artikelnummer20040266
Artikelbeschreibung6U CompactPCI rear transition module with AMD MXM graphics module, cPCI-R6500 Series
ArchitekturCPCI
