Beschreibung

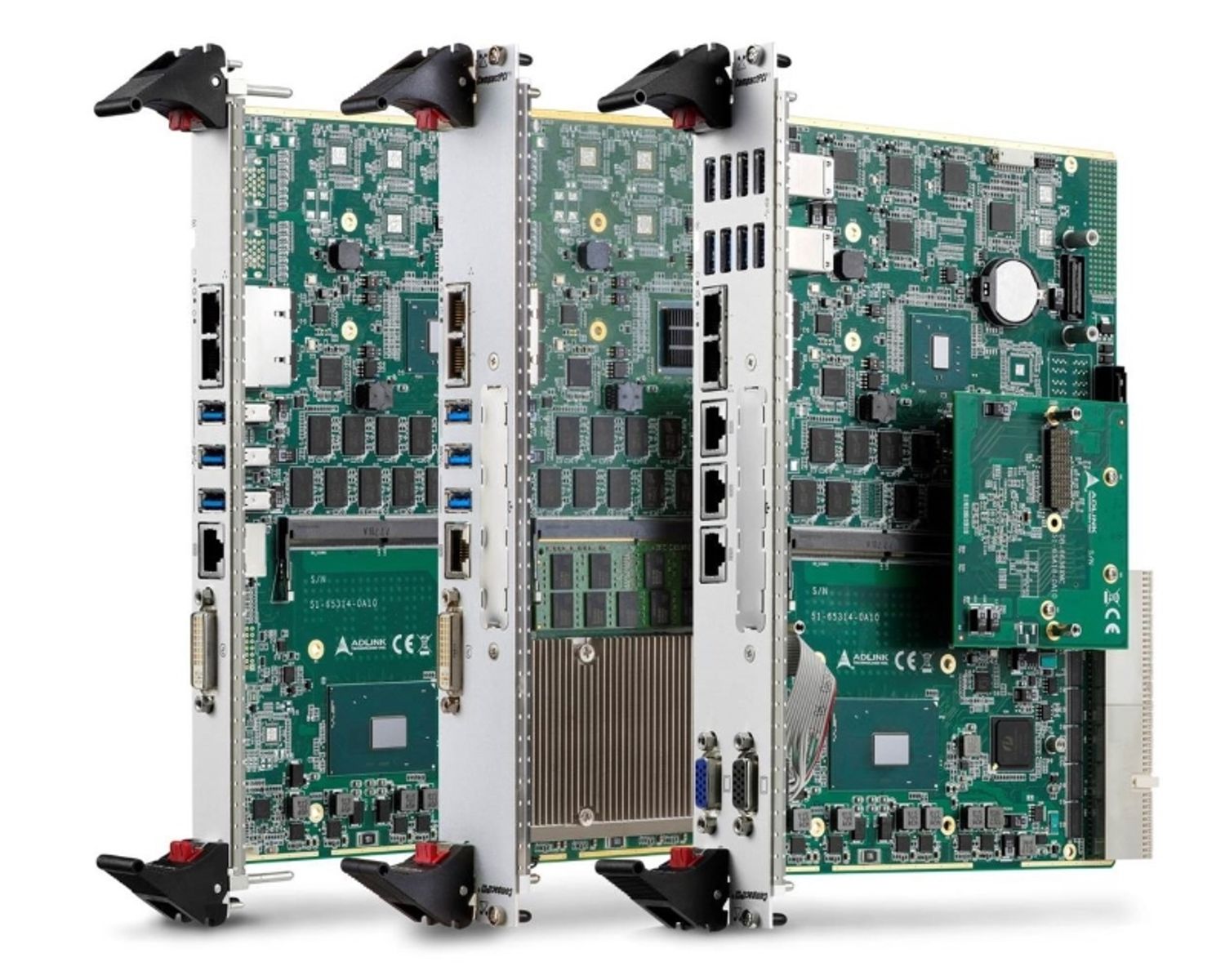

xThe cPCI-6636 Series is a 6U CompactPCI® processor blade based on the 6th/7th Generation Intel® Xeon® E3 and Intel® Core™ i3/i7 Processors with Intel® HM170 or CM236 Chipsets. The cPCI-6636 supports up to 16GB onboard DDR4-2133 memory and 16GB DDR4-2133 via SODIMM. Total memory capacity is up to 32GB of DDR4-2133. The cPCI-6636 is a highly integrated processor blade fit for mission critical applications in industries ranging from automation to defence. The cPCI-6636 is the successor to ADLINK’s cPCI-6626 and cPCI-6525 in terms of I/O and feature set. The cPCI-6636 provides a 2.8x performance boost over the 2nd gen Core™ i7 (cPCI-6626) and 30% performance boost over 3rd gen Core™ i7 (cPCI-6525). Graphics features include 3 symmetric independent displays, 3D HW acceleration, DirectX 12, OpenGL 4.4, and H.265 HW decode/encode. The cPCI-6636 achieves 2.7x graphics score improvement over the 3rd gen Core™ i7 (cPCI-6525).
Produktmerkmale
x- CPU options: Intel® Core™ i7-7820EQ 3GHz, 4C/8T, GT2, 8M cache, 45W (35W by cTDP) Intel® Core™ i3-7102E 2.1GHz, 2C/4T, 3M cache smart, 25W Intel® Xeon® E3-1505M v5, 2.8/3.7GHz, 4C/8T, GT2, 8M, 45W (35W by cTDP) Intel® Core™ i7-6820EQ 2.8/3.5GHz, 4C/8T, GT2, 8M, 45W (non ECC) Intel® Core™ i3-6100E 2.7GHz, 2C/4T, GT2, 3M, 35W
- Up to 32GB DDR4-2133 memory, soldered and SO-DIMM, optional ECC
- XMC connector support (8HP models)
- Up to 8x USB 3.0
- Up to 4x GbE to rear I/O
- SEMA 3.5 support
- Ideal for legacy systems processor upgrades
Produktinformation
xArtikel/Artikelnummer20040260
ArtikelbeschreibungcPCI-6636(KL) Series 6U CompactPCI Processor Blade
ArchitekturCPCI
