Beschreibung

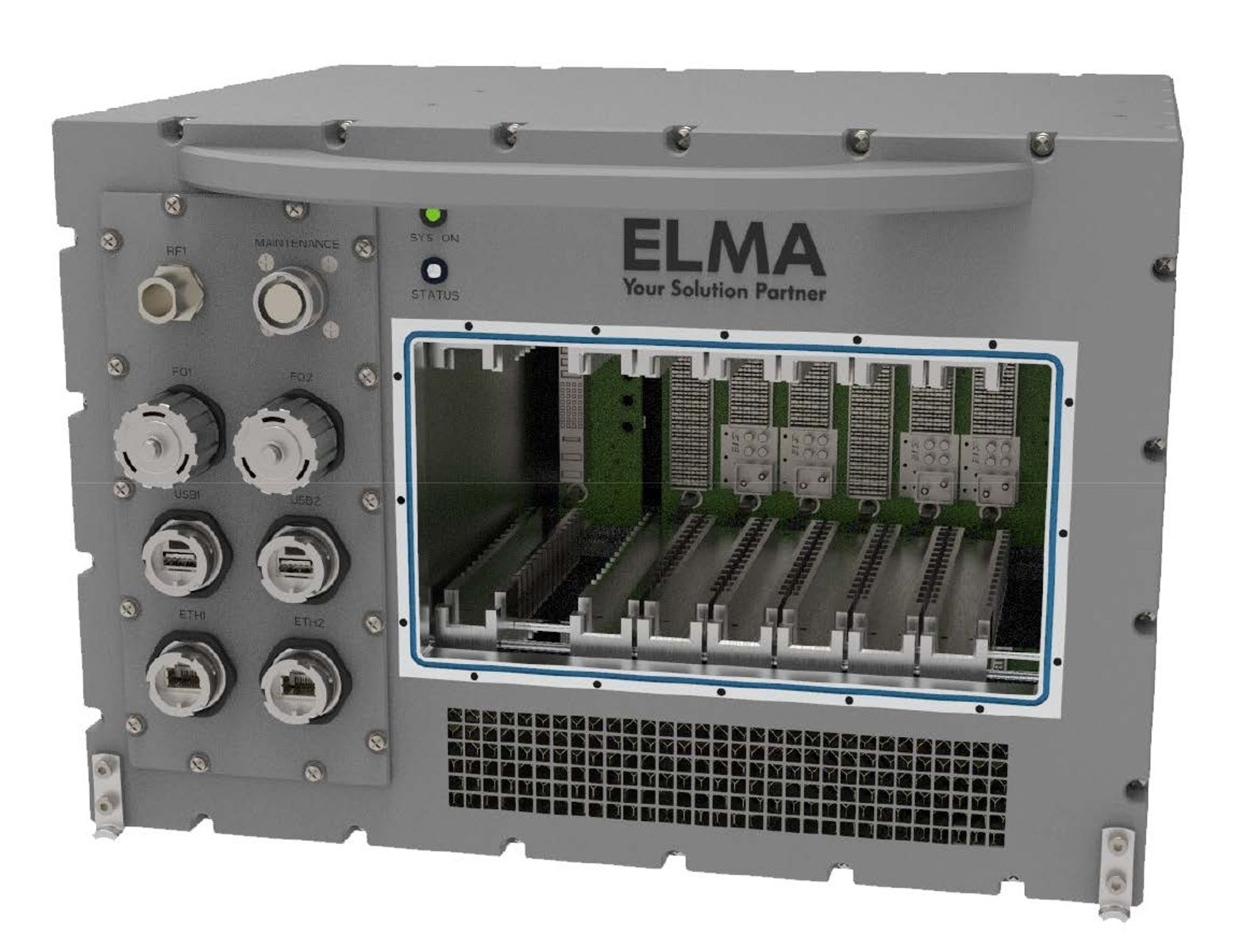

xThis unit is a rack-mountable, rugged deployable chassis for use in harsh environments. The chassis has been designed to provide modularity and flexibility to support the full design life cycle of a system from initial concept and lab development through to qualification and full platform deployment. The chassis is designed to accommodate the latest 3U VPX backplanes aligned to SOSA™, or 3U CompactPCI Serial, as well as fully custom cards. Both air and conduction cooled cards can be supported within the card cage. Airflow is drawn front to rear through the chassis.
Produktmerkmale
x- 3U card cage for up to eight cards on 5HP pitch (1") supports air cooled and conduction cooled cards
- Supports 80mm rear transition module (RTM) cards in all card positions
- Chassis manager (SOSA aligned option) includes payload management, voltage and temperature monitoring, and fan speed control
- Customisable PSU with AC ATX, DC ATX, VITA 62, GVA or custom PSU options
- Options for fixed mount, tray or 19" rack-mounting
- Optional gasket seals for enhanced EMC and IP performance and honeycomb filters on air inlet and exhaust
- Operation and storage temperatures: -40°C to +75°C
- RoHS compliant
- Approximate weight (without payload): 12 Kg
- Contact the UK sales team for details and configuration options
Produktinformation
xArtikel/Artikelnummer20037765
ArtikelbeschreibungRugged Deployable, Rackmountable Chassis for 3U Cards Aligned to SOSA or CPCI Serial
ArchitekturCPCI Serial, VPX/OpenVPX, and SOSA
